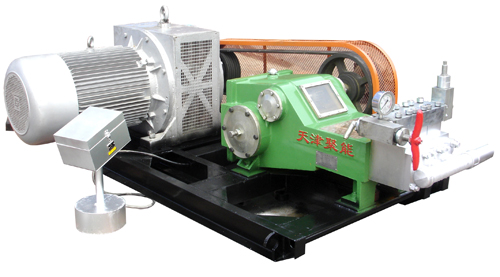

3S3 Series High Pressure Water Injection Pump
The s3 3 series high pressure reciprocating pump as a power source for the high pressure water. For size diameter pipeline cleaning, boat clean, build emotions, derusting, powder metallurgy and other fields. Can transport water, emulsion and liquid properties similar to water.
The pump hydraulic end is equipped with safety valve, throttle valve, its own system, adjustable throttle valve to meet the needs of different flow rate. The pump power end of transmission () between the crankshaft and connecting rod bearing type. Using splash lubrication, the lubrication can be 24 hours of continuous operation, without cooling. According to customer requirements, equipped with all kinds of power supply.
Special tip; For s3 3 pump flow rate is bigger, the size of nozzle used must be matching the pump flow and pressure of work, if the nozzle is too small, a lot of water through the overflow valve discharge will cause return line jitter, and even cause a shaking of the pump.
Performance Parameter List
|
Motor Speed |
1480r/min |
Stroke Length |
110mm |
|||||
|
Theoretical Capacity |
Motor Power（KW） |
Plunger Diameter |
||||||
|
37 |
45 |
55 |
75 |
90 |
110 |
|||
|
M3/h |
L/min |
Rated Discharge Pressure（Mpa） |
||||||
|
9.80 |
164 |
11 |
14 |
17 |
25 |
30 |
37 |
40 |
|
12.4 |
207 |
8.7 |
11 |
14 |
20 |
24 |
29 |
45 |
|
15.4 |
257 |
7.0 |
9 |
11 |
16 |
19 |
23 |
50 |
|
18.6 |
311 |
5.8 |
7.5 |
9 |
13 |
16 |
19 |
55 |
|
22.0 |
370 |
4.0 |
6 |
7.5 |
11 |
13 |
16 |
60 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
