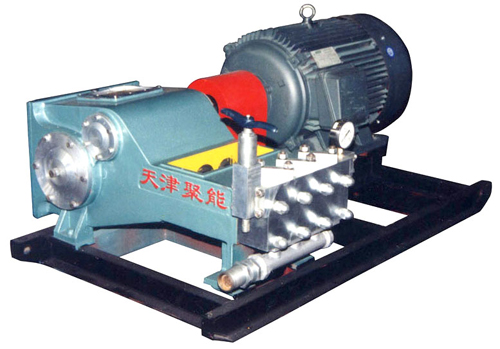

High Temperature Reciprocating Pump SGW70
SGW70 series high pressure reciprocating pump can be used as high temperature and high pressure is the power source. Used for size diameter pipeline cleaning, vessel cleaning, cleaning, rust removing and water corrosion parts cutting purposes. Can transport high temperature water (below 90 ℃), high temperature liquid emulsion and chemical properties similar to water.
The pump hydraulic end is equipped with safety valve, throttle valve, its own system, adjustable throttle valve to meet the needs of different flow rate. The pump power end for bearing transmission (between the crankshaft and connecting rod). Gear grinding process manufacturing (spur), low noise, small vibration, stable transmission. Using splash lubrication, the lubrication can be 24 hours of continuous operation, its water cooling system.
Can form a complete set for the user a variety of cleaning machine, valve, high-pressure pipe, spray gun, etc.
According to customer demand for supporting various sources of power.
Performance Parameter List
|
Input Speed |
1480r/min |
Stroke Length |
84mm |
|||||
|
Theoretical Capacity |
Motor Power（KW） |
Plunger Diameter
mm |
||||||
|
22 |
37 |
45 |
55 |
75 |
90 |
|||
|
M3/h |
L/min |
Rated Discharge Pressure（Mpa） |
||||||
|
1.0 |
16 |
67 |
// |
// |
// |
// |
// |
15 |
|
1.7 |
29 |
37 |
62 |
75 |
// |
// |
// |
20 |
|
2.7 |
45 |
24 |
40 |
49 |
60 |
81 |
// |
25 |
|
3.9 |
65 |
16 |
28 |
35 |
42 |
57 |
70 |
30 |
|
4.5 |
75 |
14 |
26 |
32 |
39 |
53 |
62 |
32 |
|
5.4 |
90 |
12 |
21.3 |
26 |
32 |
44 |
50 |
35 |
|
7.0 |
117 |
9 |
16.5 |
20 |
25 |
34 |
40 |
40 |
|
9.0 |
148 |
7 |
12 |
16 |
19.5 |
26.5 |
30 |
45 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
